Thursday, December 29, 2011

DC17 Won't Suck Up

A common issue on the DC17 model is the suction disappearing, and eventually the motor turning off. The issue is likely a very easy fix. A lot of people have gotten rid of their Dyson altogether when they could have solved the problem in less than a minute.
The likely reason your DC17 has lost its suction is because the seal at the bottome of the cyclone assembly is not as tight as it needs to be, so over time, if the bottom of the bin is not closed precisely each time, it will push up on the rubber seal, and little by little over time, push it up.
When that happens, the seal is broken at the bottom and much of what is sucked up is sucked in through the cyclones and onto the filter instead of staying in the bin.
Naturally, that blocks the airflow which decreases the suction, which stops air from coming in the motor to cool it off, which causes it to overheat and turn off to cool down.
The solution is simple, just open up the bottom of the bin and pull the seal back into place all the way around (yes, you will have to wash your hands when you are done).

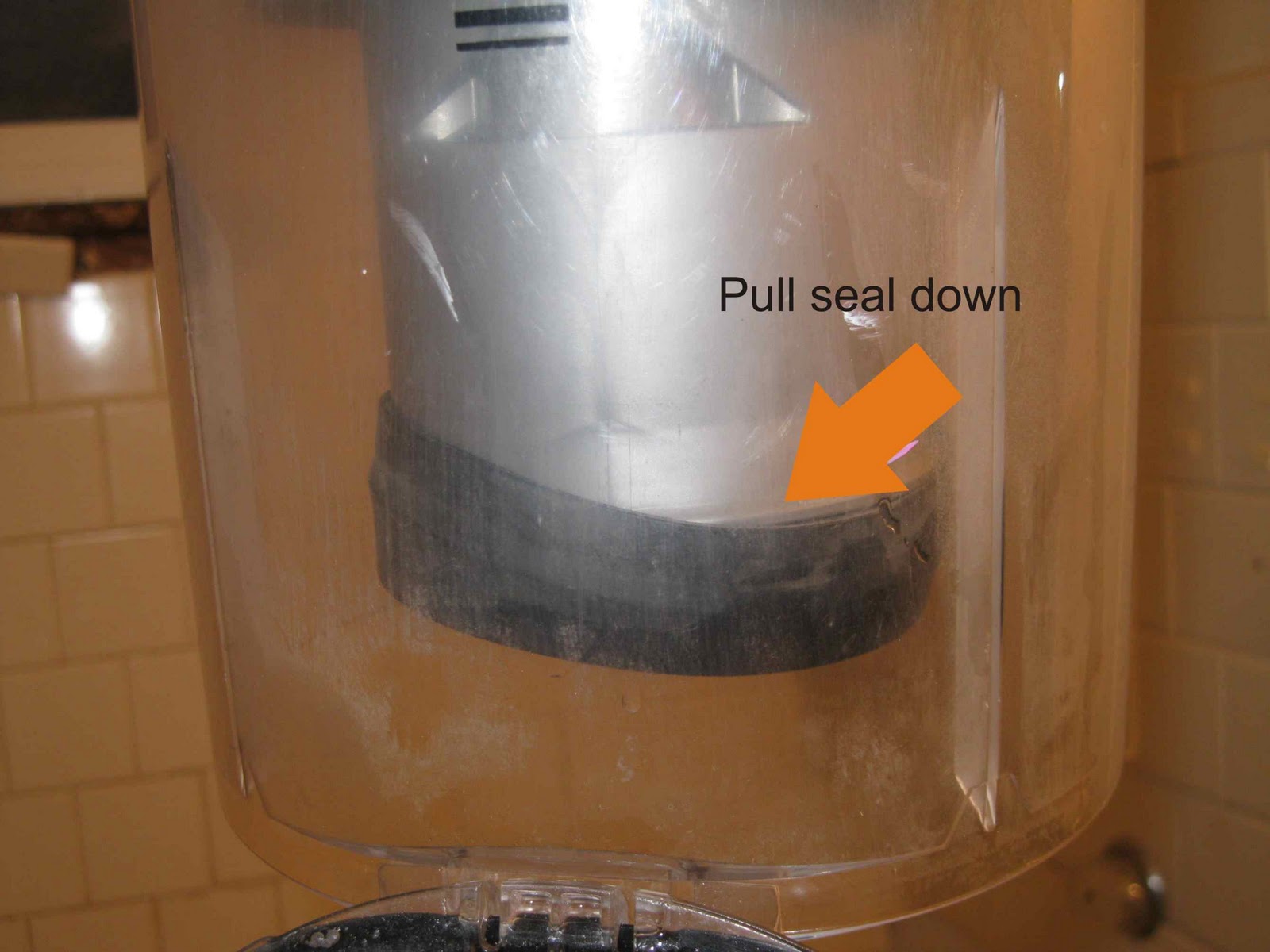

It should like the picture below when you are done. If you want, to keep it from being an issue any longer, you could put some super glue on the inside of the seal at the top where it locks in to the cyclone assembly.

10 comments:

  1. Perfect, that was the problem. This is the best Dyson I've had and I was ready to toss it.

    ReplyDelete
  2. Great tip. We just fixed our Dyson using the tip.
    Many many Thanks. Keeps up the good work.

    ReplyDelete
  3. Didn't solve my problem

    ReplyDelete
  4. Thank you best Tip. I fix my vacuum Aslo

    ReplyDelete
  5. My Dyson is only picking up if I use the hose extension, if I try to use it normally, air just sucks from the red extention vent.is this fixable thankyou.

    ReplyDelete
  6. Where can I find a replacement for that seal. I've looked at many suppliers and they don't have it.

    ReplyDelete
  7. My seal was completely gone. I believe the Dyson P/N is Part #912299-01. Googling that I found it available via Amazon for $10. I'm hoping this resolves the issue. Thank you!

    ReplyDelete
    Replies
    1. This comment has been removed by the author.

      Delete
    2. The part number I listed is correct (I believe), but that was not the part I received from Amazon. Looking further, using both "912299-01" and "DY-91229901", I have not been able to locate a replacement. :-(

      Delete
    3. Ultimately I failed in trying to locate this replacement part but did find a full canister for sale on eBay which I used to get my DC17 running again.

      Delete
